Setup Security Hub using programm "LocalConfig"

The LocalConfig utility is used to configure the Security Hub controller. Using this utility, you can configure the internal parameters of the controller that can’t be changed through the cloud.



Parameters that can be edited using LocalConfig:

Frequency channel – frequency range of the Security Hub radio module. By default, the channel is set to "1" (frequency 433.42 MHz). Channel "3" (frequency 434.42 MHz) is available for change.

Frequency shift – exact frequency offset parameter, it is recommended to change as a last resort.

Entry delay – delay time set in seconds. The default is 45 seconds.

Exit delay – delay time set in seconds. The default is 60 seconds.

Arming on unhandled alarm – permission/prohibition of arming on unhandled alarm. Handling an alarm means confirming the alarm and specifying its cause in the Mobile Application or desktop software. The default value is “Allowed”.

Arming on loss of connection – permission/prohibition of arming on loss of controller-server connection. The default value is “Allowed”.

Disarming on loss of connection – permission/prohibition of disarming on loss of controller-server connection. The default value is “Allowed”.

Roaming – permission/prohibition of operation in roaming. The default value is “Allowed”.

Main server IP – IP address of the server that the controller is operating with. The default value is 185.27.192.163 (the IP address of the public Security Hub server). If your Security Hub will operate with another server, you must specify the static IP address of that server.

Main server port – port for operating with the server. The default value is 2222.

Backup server IP/port – specify if necessary. The default value is 0.0.0.0.

SIM 1 / 2 APN – Access Point Name, this is an ID depending on the mobile operator you use. Often set automatically. The default value is “Internet”.

SIM 1 / 2 login, password – set if necessary. Default value is empty.

Controller static IP – the parameter is set if you want to configure a static IP address for the Security Hub in your local network. The default value is 0.0.0.0. In this case, the IP address for the Security Hub is set automatically (provided that the router's DHCP is enabled).

Static IP mask, gateway – set if necessary. The default value is 0.0.0.0

Controller PIN code – Enter this code after launching LocalConfig. The default value is 5555.

Min./Max. temperature of the partition X – Temperature setting for Security Hub partitions. By setting the temperature value in degrees Celsius (for example, 50 or -30), you will receive notifications of the “Attention” category if the temperature in the partition drops below the minimum temperature or rises above the maximum. (This function is also can be configured from a mobile app. more on the link)


NOTE: The LocalConfig utility is not public and is only sent to a qualified engineer.




Configuration order:

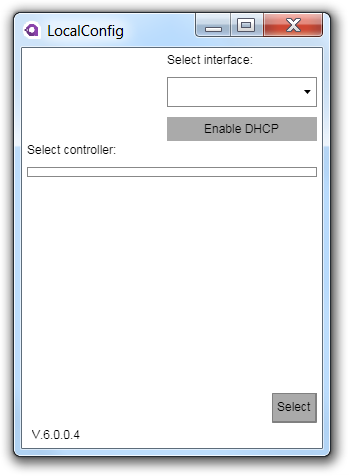

1. To change the internal settings of the controller, run the utility. The controller must be connected to the same local network as the PC with LocalConfig.

fig. 1

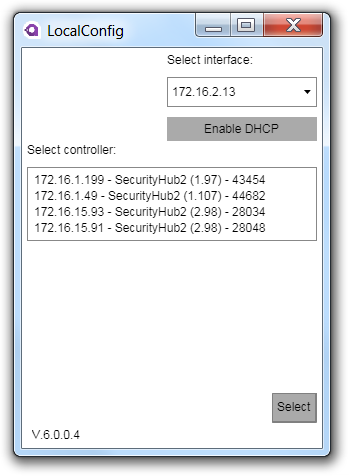

2. Select the network interface (IP address of the controller). If you have 1 controller, then 1 IP address will be indicated in the software.

fig. 2

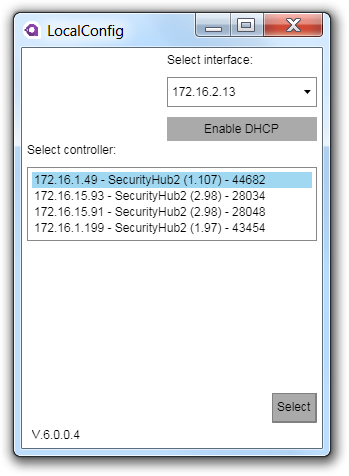

3. Select controller and click the "Select" button.

fig. 3

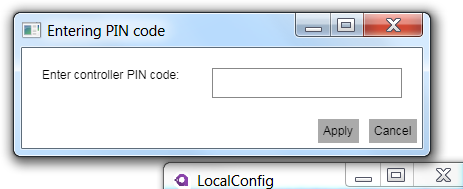

4. Enter PIN code of the controller, default value is 5555.

fig. 4

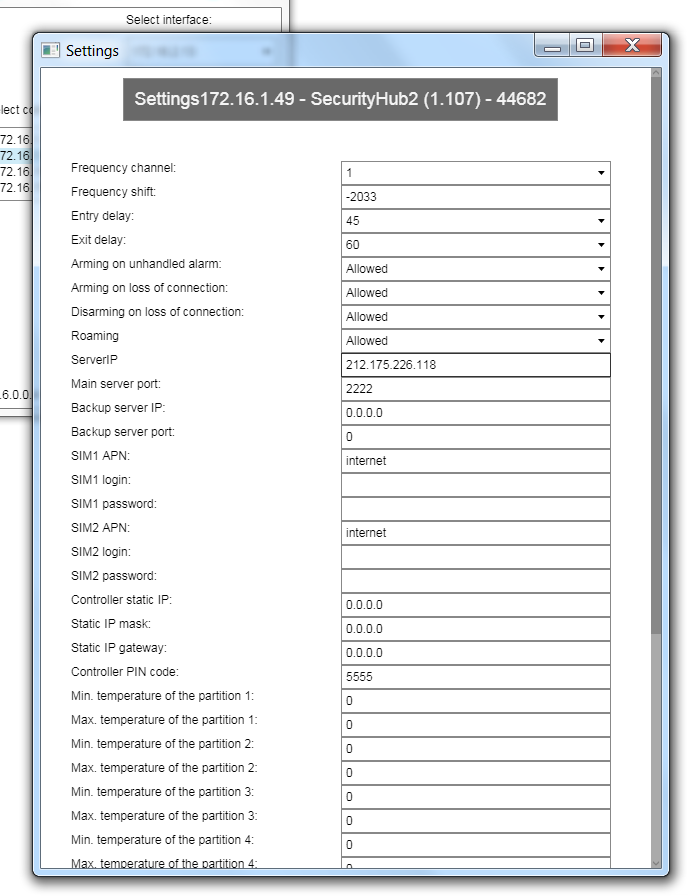

5. After entering PIN code, the "Settings" window opens.

fig. 5

Pay attention to the indication of the controller. When correctly entering the configuration mode, the following indication will be displayed (all indicators are lit at the same time):

fig. 6

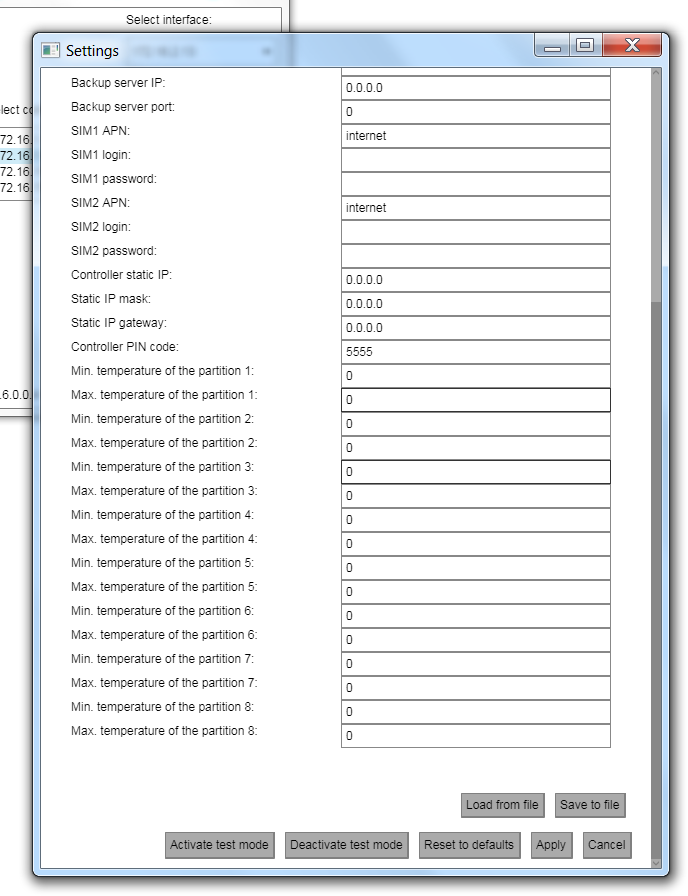

6. Set the required settings and click the "Apply" button.

fig. 7

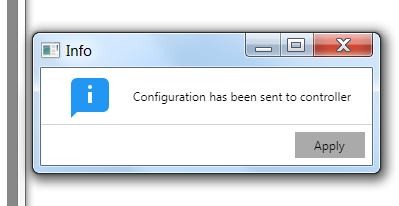

7. In the information window that appears, click the "Apply" button.

fig. 8

After the configuration is completed, the controller indication should return to its original state.
